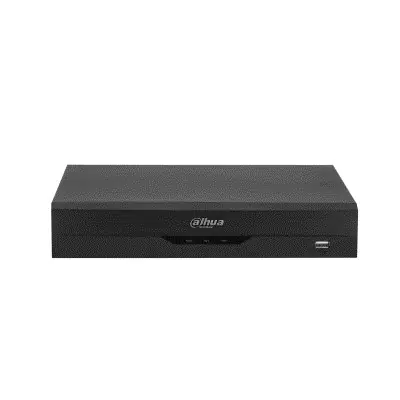

XVR DAHUA 4CH UP TO 5MP

https://ssc.tn/web/image/product.template/3441/image_1920?unique=5b67311
(0 avis)
XVR Dahua 4CH prend en charge jusqu'à 5 MP pour des enregistrements haute définition. Compatible avec les caméras HDCVI, AHD, TVI, CVBS, et IP, il propose une surveillance multi-formats avec une qualité d'image exceptionnelle. Ce modèle inclut 4 canaux BNC, des sorties HDMI et VGA simultanées, ainsi qu'une transmission longue distance via câble coaxial. Il supporte également les protocoles ONVIF et RTSP, assurant une compatibilité avec la plupart des caméras réseau.

301,070 DT 301.07 TND 301,070 DT

230,000 DT

Not Available For Sale

Cette combinaison n'existe pas.

Contactez-nous
DVR/XVR

Conditions générales

Expédition : 1-2 jours ouvrables

Référence interne: DH-XVR5104HS-I3
Code-barres: 6939554930348

System

  • Main Processor: Embedded processor
  • Operating System: Embedded Linux

Perimeter Protection

  • Performance: 1 channel, 10 IVS (Intelligent Video Surveillance) per channel
  • Object Classification: Human/Vehicle secondary recognition for tripwire and intrusion
  • AI Search: Search by target classification (Human, Vehicle)

Face Recognition

  • Performance:
    • Max 8 face pictures/second processing
    • 1 channel video stream for face recognition (supports only analog cameras)
  • Stranger Mode: Detects unknown faces (not in the device's face database), with manually set similarity thresholds
  • AI Search: Up to 8 target faces can be searched simultaneously with adjustable similarity thresholds
  • Database Management:
    • Supports up to 10 face databases with a total of 10,000 face images
    • Stores additional details such as name, gender, birthday, address, certificate type, number, country, and region
  • Database Application: Each database can be applied independently to video channels
  • Trigger Events: Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation

SMD Plus

  • Performance: 4 channels
  • AI Search: Search by target classification (Human, Vehicle)

Video and Audio

  • Analog Camera Input: 4 channels, BNC
  • HDCVI Camera Input: 5MP, 4MP, 1080P @ 25/30 fps, 720P @ 50/60 fps, 720P @ 25/30 fps
  • AHD Camera Input: 5MP, 4MP, 1080P @ 25/30 fps, 720P @ 25/30 fps
  • TVI Camera Input: 5MP, 4MP, 1080P @ 25/30 fps, 720P @ 25/30 fps
  • CVBS Camera Input: PAL/NTSC
  • IP Camera Input: 4+2 channels, up to 6MP per channel
  • Audio In/Out: 1/1, RCA
  • Two-way Talk: Reuse audio in/out, RCA

Recording

  • Compression: AI Coding/H.265+/H.265/H.264+/H.264
  • Resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
  • Record Rate:
    • Main stream: All channels 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15 fps); 1080N/720P/960H/D1/CIF (1 fps–25/30 fps)
    • Sub stream: D1/CIF (1 fps–15 fps)
  • Bit Rate: 32 kbps–6144 kbps per channel
  • Record Mode: Manual, Schedule (General, Continuous), MD (Motion Detection, Video Loss, Tampering), Alarm, Stop
  • Record Interval: 1 min–60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
  • Audio Compression: G.711A, G.711U, PCM
  • Audio Sample Rate: 8 KHz, 16 bit per channel
  • Audio Bit Rate: 64 kbps per channel

Display

  • Interface: 1 HDMI, 1 VGA
  • Resolution: 1920 × 1080, 1280 × 1024, 1280 × 720
  • Multi-screen Display: 1/4 screens without IP extension mode, 1/4/6 screens with IP extension mode
  • OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

  • Interface: 1 RJ-45 Port (100 MB)
  • Network Functions: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
  • Max User Access: 128 users
  • Smart Phone Compatibility: iPhone, iPad, Android
  • Interoperability: ONVIF 16.12, CGI Conformant

Video Detection and Alarm

  • Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, Screen Tips
  • Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering, Diagnosis
  • Alarm Input: Not applicable
  • Relay Output: Not applicable

Playback and Backup

  • Playback: 1/4 channels
  • Search Mode: Time/Date, Alarm, MD, Exact Search (accurate to second)
  • Playback Functions: Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
  • Backup Mode: USB Device, Network

Storage

  • Internal HDD: 1 SATA port, up to 6 TB capacity
  • eSATA: Not applicable

Auxiliary Interface

  • USB: 2 USB ports (USB 2.0)
  • RS485: 1 port for PTZ control
  • RS232: Not applicable

Electrical

  • Power Supply: DC 12V/1.5A
  • Power Consumption: < 4W (without HDD)

Construction

  • Dimensions: 260 mm × 238 mm × 48 mm (10.24'' × 9.34'' × 1.87'')
  • Net Weight: 0.84 kg (1.85 lb)
  • Gross Weight: 1.37 kg (3.02 lb)
  • Installation: Desktop installation

Environmental

  • Operating Conditions: -10°C to +55°C (+14°F to +131°F), 0%–90% RH
  • Storage Conditions: -20°C to +70°C (-4°F to +158°F), 0%–90% RH

Third-Party Support

  • Supported Brands: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

  • FCC: Part 15 Subpart B
  • CE-LVD: EN 60950-1/IEC 60950-1
  • CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
